Installation Instructions FCA106

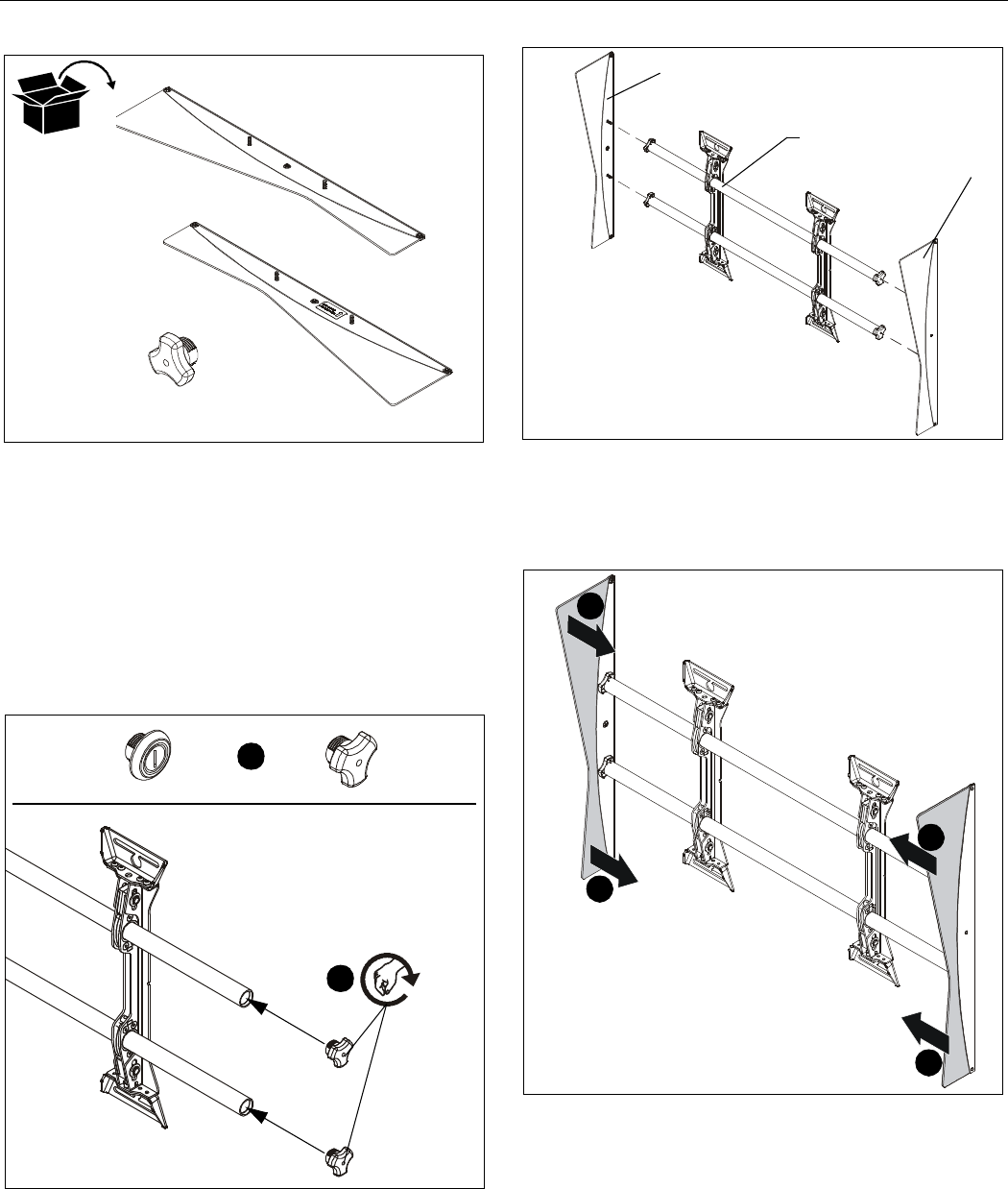

PARTS

INSTALLATION

1. Compare end caps in mount with end caps included with

FCA106 accessory. (See Figure 1)

• If end cap styles are Example A in Figure 1,

remove the end caps from the mount and discard.

[Proceed to Step 2]

• If end caps are

Example B

in Figure 1, leave the

end caps installed.

[Proceed to Step 3]

2. Insert four new end caps (C) into mount and hand tighten.

(See Figure 1)

Figure 1

3. Insert left side cover (A) and right side cover (B) [with

narrower end towards bottom] into mount end caps. (See

Figure 2)

Figure 2

4. Roll the edges of the side covers in toward mount and tuck

slightly behind display for proper coverage. (See Figure 3)

Figure 3

A (1)

[Left side cover]

B (1)

[Right side cover]

C (4)

[End cap]

Example A

Example B

(C x 4)

Mount

(A)

(B)

1 2 3 4
